CSE010-0171-06 Castle Creations Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo

Castle Creations Mamba Micro X2 Waterproof 1/14th Scale Sensored Brushless Combo

CSE010-0171-06

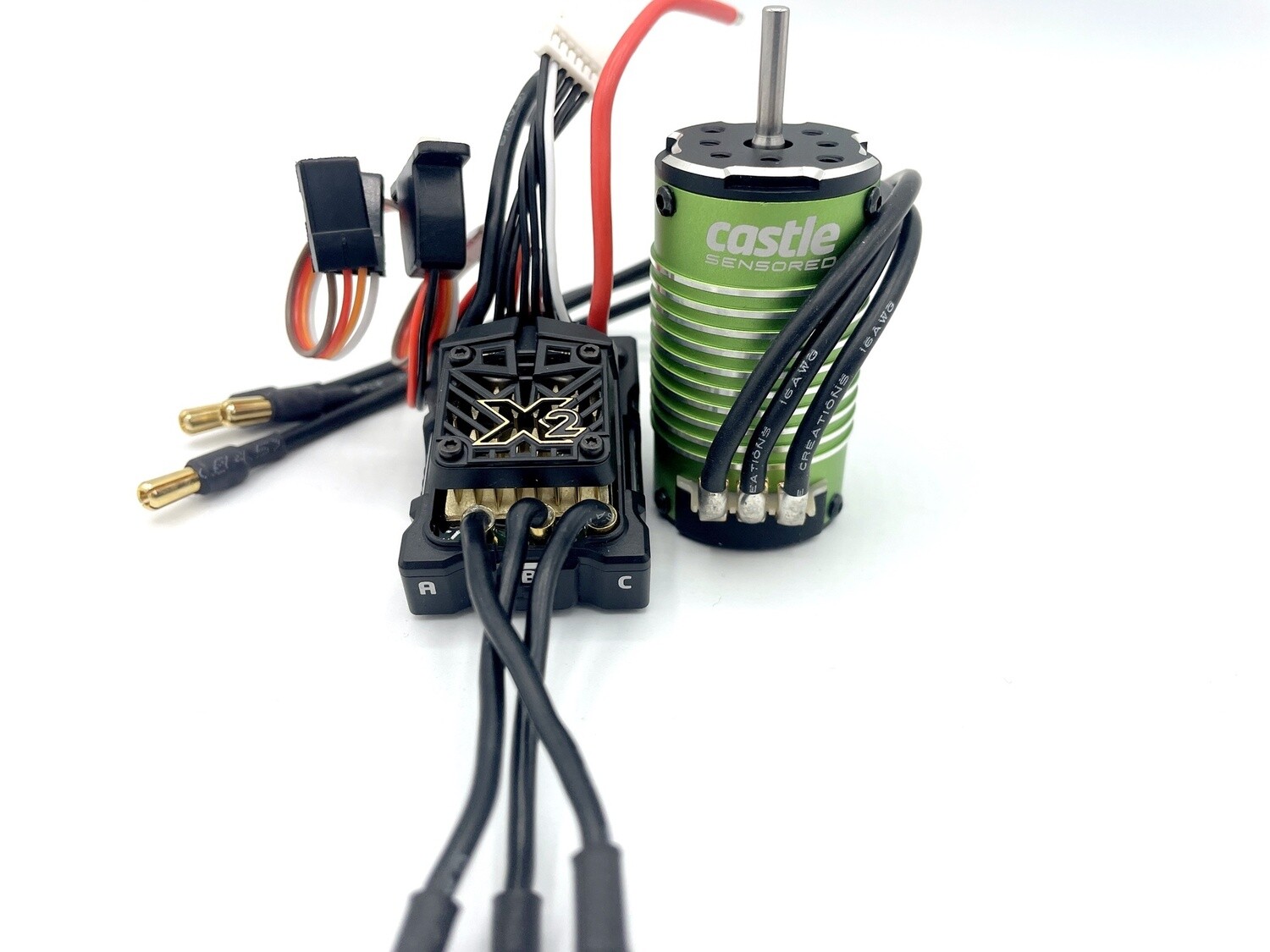

Mamba Micro X2, 16.8V, Waterproof ESC with 1007-6350KV Sensored Motor Combo

The Mamba Micro X2 is a refresh of our popular Mamba Micro X. This new ESC increases the maximum input voltage to 4s. We also added DATA LOGGING and our CRYO-DRIVE(TM) TECHNOLOGY; CryoDrive allows the ESC to run cooler and more efficiently at partial throttle. Like its predecessor, it is waterproof* and has SENSORED MOTOR SUPPORT.

This ESC and Motor Combo is ideal for 1/14th and 1/16th scale vehicles, weighing up to 2.75lbs and up to 3s LiPo. The sensored 1007-6350kv motor allows for smooth startup with heaps of torque and low temperatures.

Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.

Includes:

• Mamba Micro X2 ESC with 4mm Connectors
• External 10-amp CC BEC
• 1007-6350Kv Sensored Motor
• Sensor Harness
• Coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter
• Quick Start Guide
• Castle Decals

Features:

• Input Voltage range 2S-3S with included motor.
• Waterproof design, included CC BEC is not waterproof.
• Sensored Motor capable
• Convenient transmitter programming for six common adjustable settings.
• Additional settings and software updates available via Windows(R)-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (discount coupon included)
• Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
• Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake.
• Audible Alerts that will notify you of possible issues with calibrations and error conditions.
• Designed and manufactured in Olathe, Kansas and is backed by Castle Creations' 1-year warranty.

ESC Specifications:

• Input Voltage Range: 2S-4S LiPo (16.8V Max)
• BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
• Operating Environment: Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof.
• Brake: Proportional
• Reversible: Yes, but may be disabled
• On/Off Switch: Yes, waterproof
• Cooling Fan: Coming soon, uses 25mm size fan
• Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
• Weight (with wires): 1.66 oz / 47 grams
• Connectors: 4.0 mm bullets

Motor Specifications:

• Input Voltage Range: 2s - 3s LiPo
• kV: 6350
• Max. RPM: 80,000
• Size: Length: 50.3 mm, Diameter: 28 mm
• Weight (w/wires): 4.05oz (114.8g)
• Shaft Size: Length: 15 mm, Diameter: 1/8" (3.175 mm)
• Mounting Hole Specifications: M.5 @ 14mm & 16mm; M3 @ 19 mm
• Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire
• Application Guidelines: Ideal for 1/16th and 1/14th scale vehicles weighing up to 2.75lbs.
